IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System

Yongsheng Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System from wholesalers

    Buy cheap IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System from wholesalers
    • Buy cheap IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System from wholesalers

    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System

    Ask Lasest Price
    Brand Name : YS L Series
    Model Number : Stackable
    Certification : MSDS, UL, CE, ROHS, etc
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3500 Per Months
    Delivery Time : 7-10 days for sample , 20-25days for bulk order
    • Product Details
    • Company Profile

    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System

    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS FOR Solar Panel System


    Features:

    • Longer Cycle Life Time,More Than 5000 Cycle Lifetimes
    • High capacity and high output and reliableHigh capacity and high output and reliable
    • Friendly to the environment:No Cadmium, Mercury effect, Lead

    • Extremely strong environmental adaptability, can be installed outdoors and indoors.Wide operating temperature

    • Supporting CAN-BUS function, battery cells, BMS and Chargers are communicable.

    • With a LCD display, can display parameters of battery, temperature, SOC value, etc.
    • Simple and elegant appearance design
    • Factory Price and Excellent After sales

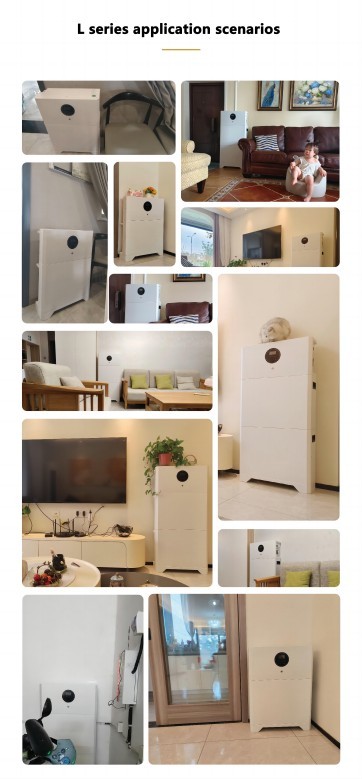

    Application:

    1. Home solar energy storage system, hospital, school, office space...
    2. Solar/wind energy storage system
    3. Solar battery backup
    4. On grid/off grid battery storage system
    5. Data Center Power Supply/Wind &Solar Energy Storage System/Solar Panel Power Supply/Telecommunication Energy Storage System/Intelligent Building Power Supply/School Backup System/Engineering Equipment Power Supply/Fishing Boat Engine Backup Power Supply/Solar Generator

    Why Choose US:

    1. We offer one-stop power solutions, which saves design time and cost for customer:

    --Pack design / External Case design / BMS design

    2.Strict quality control system which enhances customers' competitiveness:

    --100%PCM test by IQC

    --100% Capacity test by OQC

    3. Delivery on time & excellent service:

    --Fast Delivery in 10days if stock

    --8h response & 48h solution


    Specification
    BatteryProduct NameYS L Series
    Rated Power5.12KWH
    Rated Voltage51.2V
    Rated Capacity100A
    Discharging Voltage Range44.8V~57.6V
    Rated Charging Current50A@25℃
    Max.Charging Current100A@25℃
    Discharge Depth90%
    Communication MethodRS485/RS232/CAN
    Cycle LifeMore than 5000 Cycle
    Working TemperatureCharge:0℃~50℃
    Discharge:-10℃~55℃
    Storage Temperature-15℃~60℃
    Warranty5 Years
    Dimension588*196*808mm
    Weight58Kg
    WifiYES
    Aerosol fire protection moduleYES
    Solar InverterRated Power5000W
    Rated Voltage230VAC
    Max.Charging Current100A
    Frequency50HZ~60HZ
    Switching Time≤20ms
    WaveformPure Sine Wave
    Battery Access Voltage40~60V
    Maximum PV access voltage (open circuit)500VDC
    Maximum PV access power5500W
    MPPT Working Voltage Range120~450VDC
    Inverter Warranty2 years

    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System


    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System


    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System


    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System


    IP65 Quick Plug 51.2V 100A All In One ESS Solar Residential Battery Storage System Built In BMS For Solar Panel System


    FAQ:

    Q1. Can I have a sample order?

    A. Yes, we welcome sample order to test and check quality.


    Q2. Do you have any MOQ limit?

    A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.


    Q3. How to proceed with an order?

    A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.


    Q4. Is it OK print my logo on the product?

    A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q5. Which certificates do you have?

    A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.


    Q6. How about warranty?

    A. 5 years warranty.
